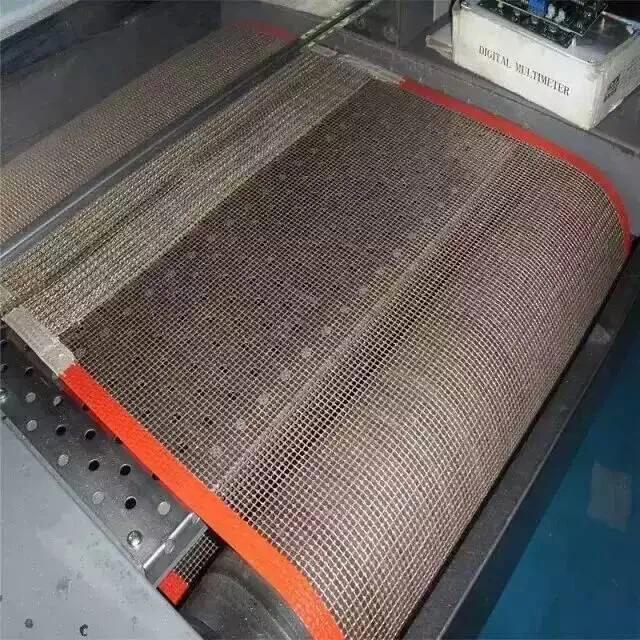

High Temperature Resistant PTFE Fiberglass Open Mesh Conveyor Belt for Drying Machine

Update time: 2025-05-15 Views: 151

Description

High temperature resistant PTFE mesh is made by Selecting best glass fiber or Kevlar as basic weaving material, processed with imported advanced weaving machine, and coated with excellent PTFE liquid to make it into all various of Ptfe mesh cloth as materials of conveyor belt. Ptfe fiberglass mesh can resistant high temperature over 250C.

Specifications:

Application:	Ptfe Fiberglass Mesh belt
Surface Treatment:	PTFE Coated
Weave Type:	Plain Woven
Yarn Type:	E-Glass
Alkali Content:	Alkali Free
Standing Temperature:	-40℃-260℃
Fiberglass:	PTFE Coated
Color:	Tan,Blue,Black,Silver

Figures for ptfe mesh conveyor belt:

Thickness:	0.2-1.35mm
Width:	300-4200mm
Mesh size:	0.5-10mm,(1x1mm,2x2.5mm,4x4mm,10x10mm..)
Weight:	450g,460,480g,490g.580g,590g.640g,745g
Tensile strength:	1600/1500N/5cm---4800/4500N/5cm

Features:

Lightweight and energy efficiency for economical operation.
Outstanding temperature resistance (-170oC + 260oC).
Low thermal mass.
Controlled porosity.
Superior non-stick surface,easy to clean.
Exceptional strength and dimensional stability.
Superior tracking.
Resistant to corrosive agents.
Non-toxic.

Product Name	PTFE Mesh
Color	Brown, Black, Customized
Size	1x1mm,2x2.5mm,1x2mm,4x4mm,6x6mm,10x10mm, Customized Size
Edge/Lateral	Reinforced
Application	Screen Printing, Mine, Food, Agriculture, Industrial, Port
Feature	Non-stick, Heat Resistant
Certificate	FDA, LFGB, SGS, ROHS, REACH
Temperature	-70~260℃
MOQ	1 roll
